PLAYMAC-4
Full Automation for "Kiddie Ride" Games and related applications

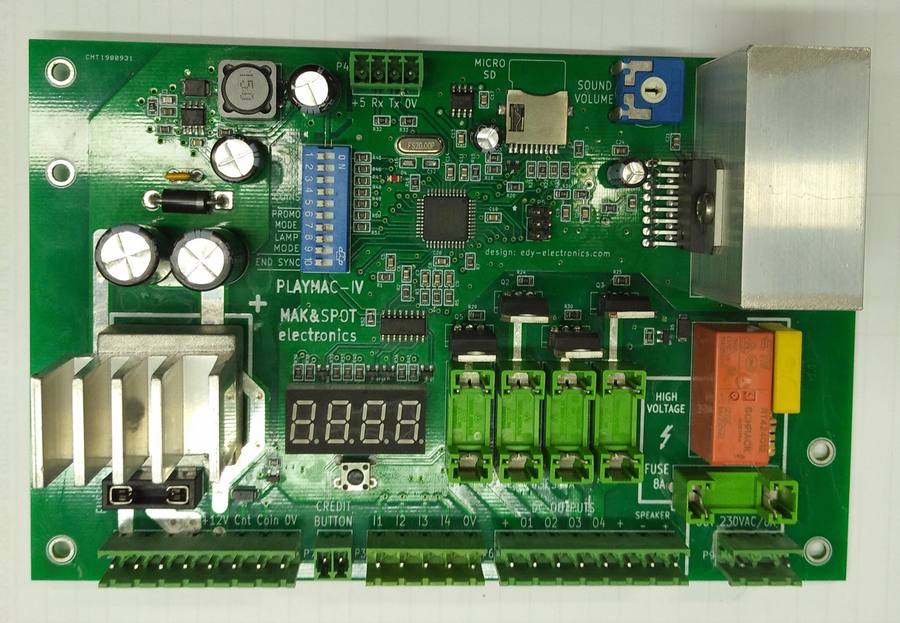

The PLAYMAC-4 device has been developed in 2021 to fully meet the requirements for the operation of a modern "Kiddie Ride" unit.
It is the fourth version of the PLAYMAC devices which are supported by company EDY electronics since 1991. These devices have been installed in many hundreds of games and have proven their reliability, by operating for many years in difficult conditions.
Some functional features of the device are the following:
* Loud high quality audio from files stored in the microSD card, thanks to the flexible sound effects reproduction system.
* Sturdy power outputs for the lamps and the main motor, protected with fuses on the board.
* The operating parameters are adjusted with 10 micro-switches on the board

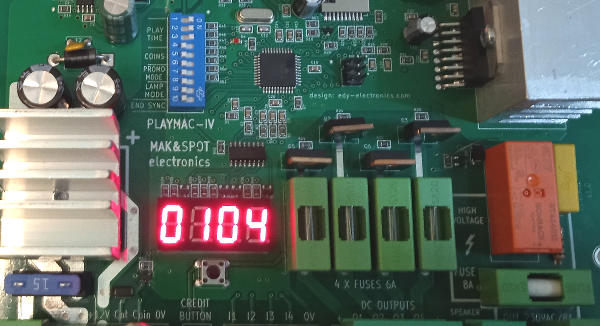

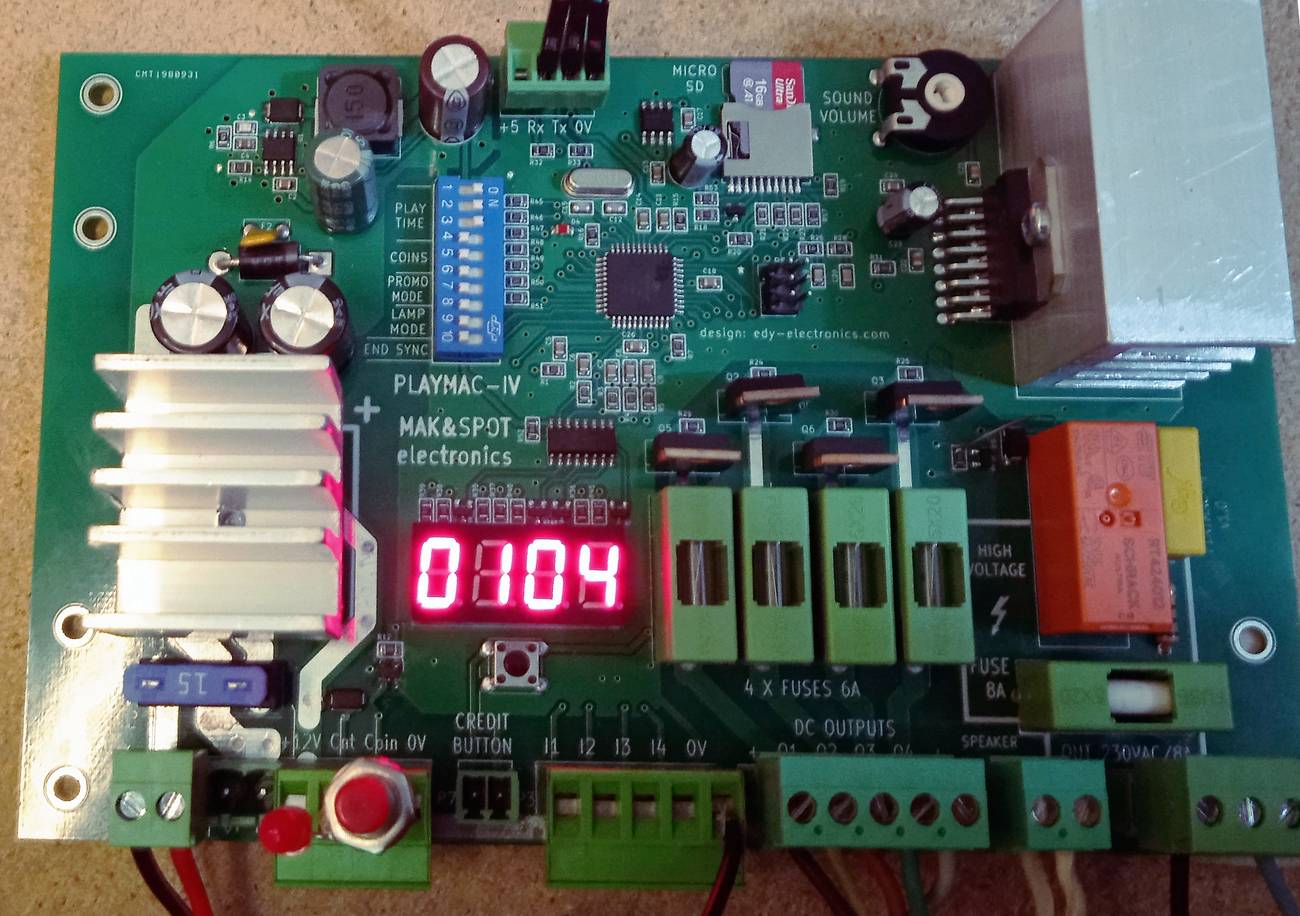

* On the printed circuit board there is a 4-digit LED display to show the total credit counter and diagnostics about the micro-SD card and also a LED indicator to monitor the current status.

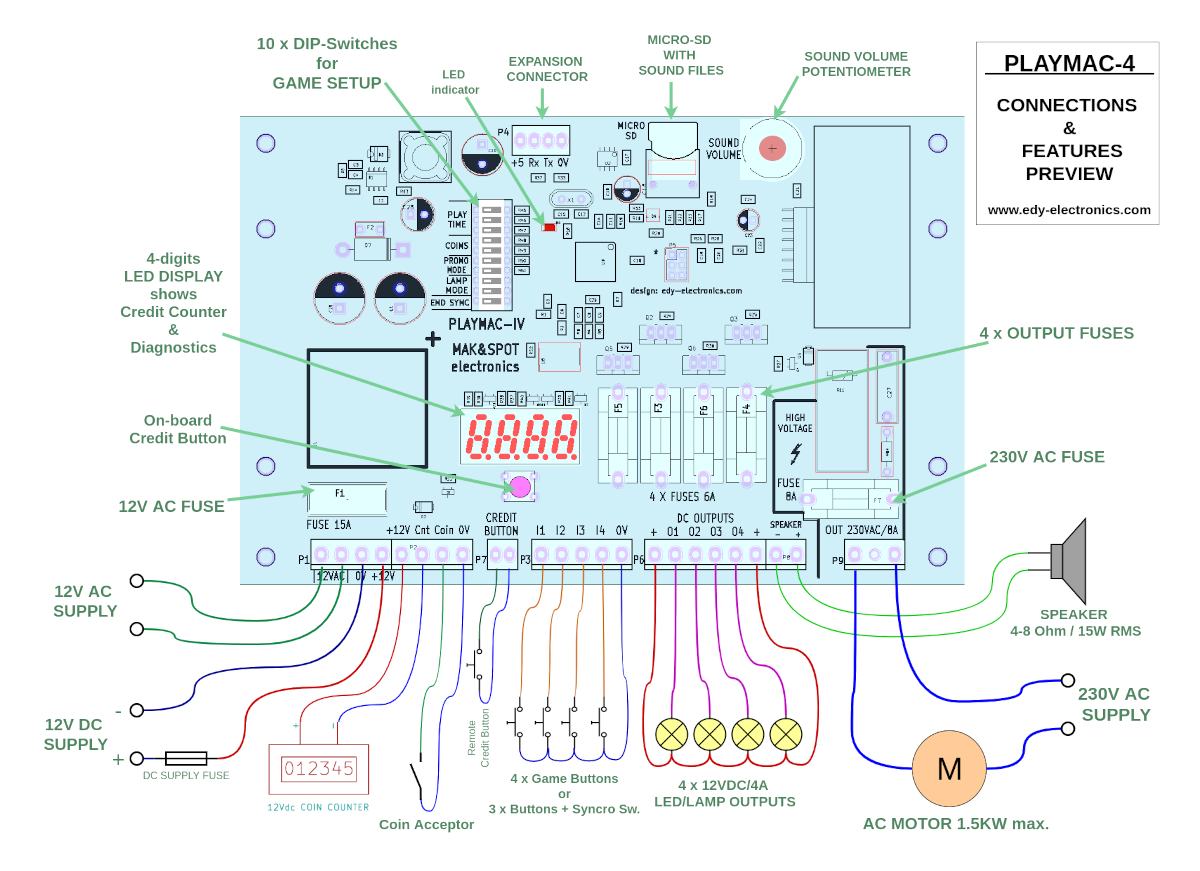

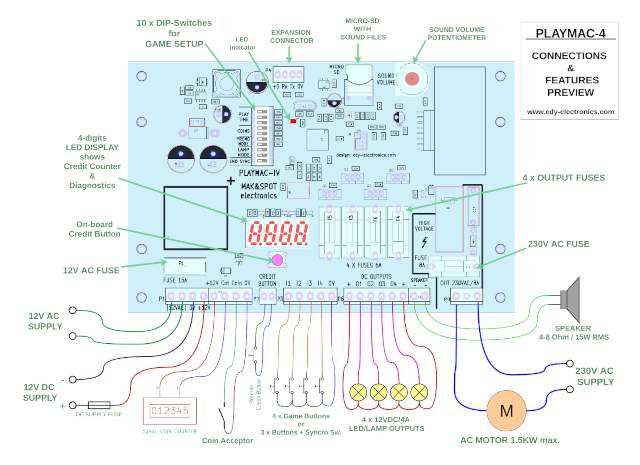

The PLAYMAC-4 has the following connectors:
- Power supply input for 12V AC or 10..16V DC.
- Coin acceptor input
- Output for mechanical credit counter
- 4 inputs for push-buttons or switches
- 4 outputs 12VDC/4A for LED or lamps
- Speaker output 4-8 Ohm / 15W RMS
- Motor control output 230VAC/1.5KW
- Extension connector for custom peripherals.
All connections are made with sturdy detachable cable terminal blocks.

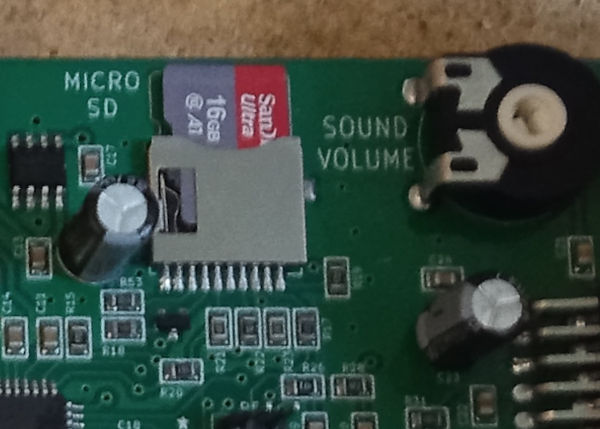

The device is equipped with a micro-SD card slot for the sound effects and music, and can play up to 240 high quality music files with a total duration of several tens of hours.
Via a simple file naming system, the PLAYMAC system gives the ability to assign sounds to various events, such as the coin tone, beginning/end of game, button effects, the game music etc.
PLAYMAC-3 Demo
The main differences between the PLAYMAC-3 device and the PLAYMAC-4 device are in the power supply unit and the outputs.
The sound reproduction system has not been changed, because it meets the existing needs very well.
Listen to the very nice mix between the music and the sound effects.

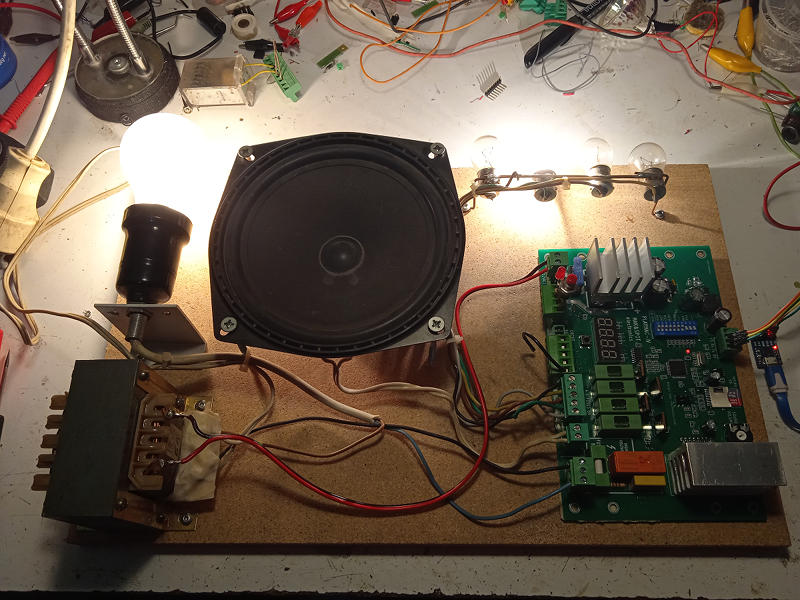

( Sometimes, a quick photo taken for practical reasons, can bring out an image with an interesting aesthetic. Art by mistake ... )
The PLAYMAC-4 device is sold as a bare electronic board or in a plastic box with IP55 protection.
The device has a warranty of operation for 12 months from the date of sale, provided that the instructions are followed and the technical specifications described in the manual are not exceeded.
For more technical details about the device or about the sound files,
please go to the page Support.
For technical questions or additional features you would like,
do not hesitate to contact us.
Retail Price (without V.A.T.) : 150,00 euro.
Sales: Mak & Spot electronics , tel. +30.2310.813.482
( for more details, check the page Partners )
